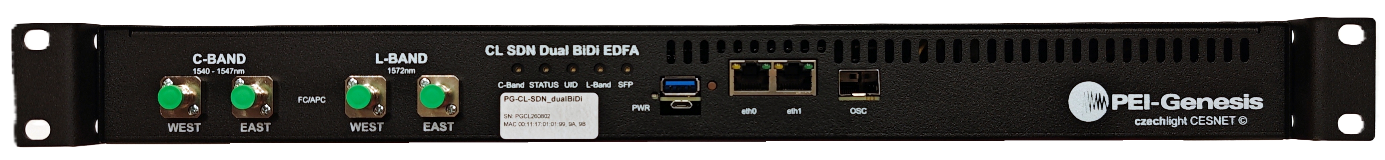

Front panel¶
Item |
Description |
|---|---|
C-BAND WEST / EAST |
FC/APC ports of the C-band module (1540–1547 nm) |
L-BAND WEST / EAST |
FC/APC ports of the 1572 nm module |
LEDs |
C-Band, STATUS, UID, L-Band, SFP |
PWR (micro-USB) |
Serial console |
USB |
TODO: purpose |
eth0, eth1 |
Gigabit Ethernet management ports (eth0 is the left one, nearer the micro-USB port) |
SFP (labelled OSC) |
Onboard SFP cage. In this configuration, without the optical supervisory channel, it works as an additional Ethernet port bridged with eth0 and eth1. See Management ports and the SFP (OSC) port. |
STATUS LED¶
State |
Meaning |
|---|---|
Solid green |
System is running without any active alarm, both power supplies connected |
Solid red |
Active alarm, for example only one power supply connected |
